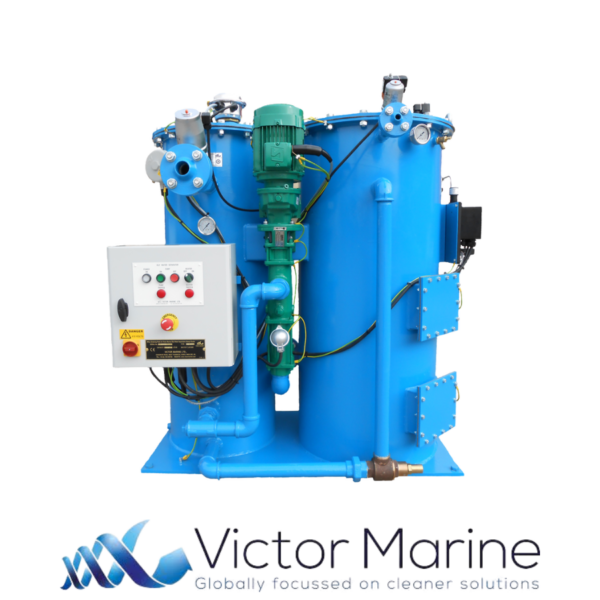

CS2000 – Oily Water Separator (2.0 m³/hr Capacity)

A high-capacity oily water separator, delivering 2.0 m³/hr processing capability, ideal for medium-to-large cargo ships, tankers, and offshore vessels.

Category Brand:

Request a quote

Description

The CS2000 Oily Water Separator is a robust and efficient bilge water treatment system, engineered to ensure IMO MEPC 107(49) compliance with a discharge standard of <5 ppm oil content. This system is designed for continuous operation in demanding maritime environments, offering reliable oil separation from bilge water with minimal maintenance requirements.

The three-stage filtration process consists of:

  • Hi-VOR (High Viscosity Oil Removal) primary separation unit for large oil droplets.
  • Coalescer element for further free oil removal.
  • Adsorption Granular Media (AGM) filter to capture emulsified oil particles.

Built from marine-grade 316 stainless steel, the CS2000 is corrosion-resistant and durable, making it suitable for offshore installations and vessels operating in extreme conditions. The system’s compact design and easy-access servicing reduce downtime and installation complexity.

Marine Technic supplies spare parts for the CS2000, including AGM media, coalescers, filter elements, and pump spares, ensuring optimal performance and continuous compliance.

Further description

  • Processing Capacity: 2.0 m³/hr (528 US gal/hr)
  • Discharge Oil Content: <5 ppm
  • Power Consumption: 1.5 kW (50/60Hz)
  • Weight (Dry/Wet): 580 kg / 1,060 kg
  • Casing Material: 316 Stainless Steel
  • Dimensions (WxDxH): 1269 × 849 × 1473 mm
  • Operating Pressure: 1.38 bar (20 psi)
