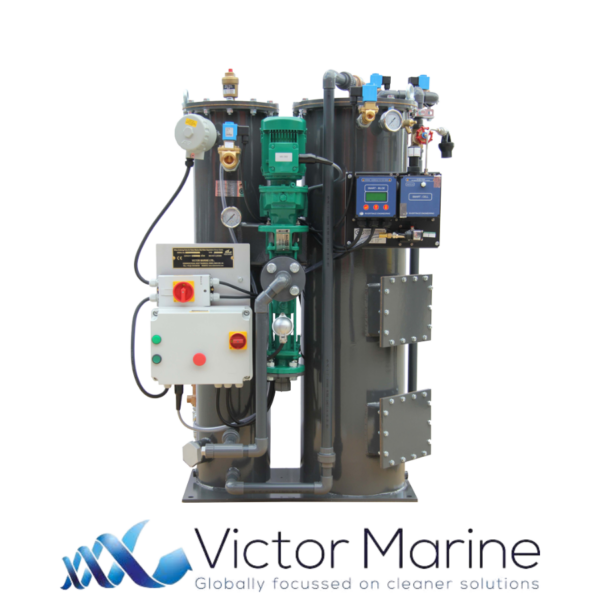

CS0500 Lite – Oily Water Separator (0.5 m³/hr Capacity)

The CS0500 Lite Oily Water Separator is a cost-effective and space-saving bilge water treatment solution, engineered for small vessels and marine applications where a compact system is required. With a processing capacity of 0.5 m³/hr, this unit efficiently separates oil, sludge, and hydrocarbons from bilge water, ensuring effluent discharge below 5 ppm oil content, in full compliance with IMO MEPC 107(49) regulations.

Despite its lighter and more compact design, the CS0500 Lite retains the same three-stage separation process found in larger models:

• Primary separation using Hi-VOR (High Viscosity Oil Removal) technology for bulk oil removal.
• Coalescer filtration to capture fine oil droplets.
• Adsorption Granular Media (AGM) filtration to eliminate emulsified hydrocarbons.

Constructed from marine-grade 316 stainless steel, the CS0500 Lite is corrosion-resistant and built for longevity. It features user-friendly operation with simple controls, allowing manual or automatic operation with minimal maintenance requirements. Its small footprint makes it ideal for vessels with space constraints, while the direct pump system ensures consistent and efficient oil separation.

Marine Technic supplies spare parts for the CS0500 Lite, including coalescers, AGM media, filter elements, and pump components, ensuring continuous operation and regulatory compliance.
