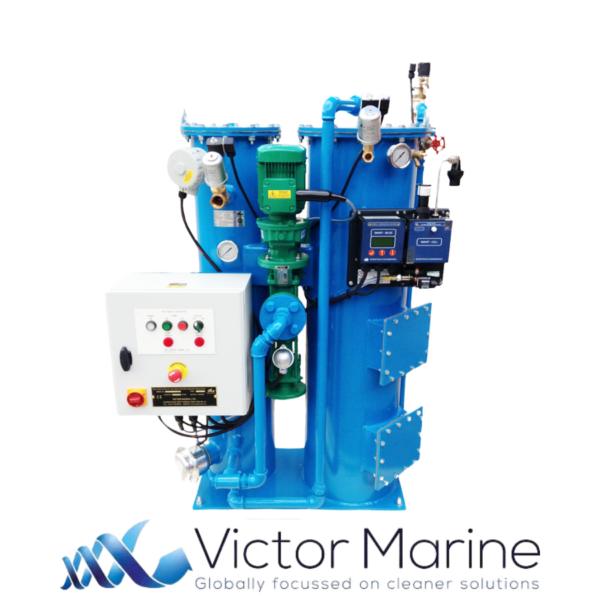

CS0500 – Oily Water Separator (0.5 m³/hr Capacity)

The CS0500 Oily Water Separator is a high-performance bilge water treatment system, engineered for fishing vessels, tugs, offshore support vessels, and patrol craft. With a processing capacity of 0.5 m³/hr, this unit ensures effective removal of oil from bilge water, discharging effluent below 5 ppm oil content, well within IMO MEPC 107(49) standards.

The three-stage separation process includes:

• Hi-VOR (High Viscosity Oil Removal) system for initial sludge and oil separation.
• Oleophilic coalescing filter element for free oil removal.
• Adsorption Granular Media (AGM) filtration to eliminate emulsified oils.

Constructed from 316 stainless steel, the CS0500 offers superior corrosion resistance and longevity. Its compact footprint allows for easy installation, making it an ideal choice for vessels with limited space. The system requires minimal maintenance, with no need for backwashing or complex cleaning cycles.

Marine Technic supplies spare parts for the CS0500 model, including filters, coalescers, AGM media, and gaskets, ensuring continuous operation and regulatory compliance.
