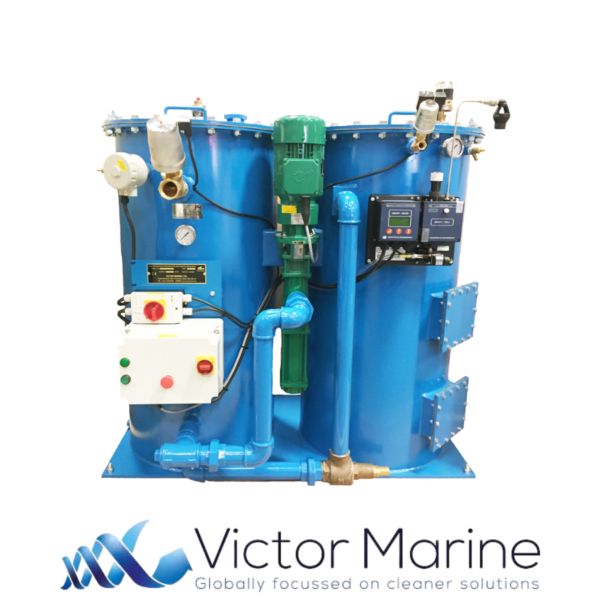

CS3000 – Oily Water Separator (3.0 m³/hr Capacity)

A powerful oily water separator, delivering 3.0 m³/hr processing capacity, optimized for container ships, tankers, and offshore support vessels.

Category Brand:

Request a quote

Description

The CS3000 Oily Water Separator is a high-capacity bilge water treatment solution, designed for vessels operating under strict environmental regulations. With a processing capacity of 3.0 m³/hr, this system efficiently removes oil, sludge, and hydrocarbons from bilge water, ensuring <5 ppm oil content discharge in full compliance with IMO MEPC 107(49).

The advanced three-stage filtration system features:

  • High-efficiency primary separation to remove large oil droplets.
  • Coalescer filtration for additional free oil removal.
  • Adsorption Granular Media (AGM) filter to capture emulsified oil and ensure water purity.

Manufactured using high-grade 316 stainless steel, the CS3000 is resistant to saltwater corrosion and extreme marine conditions. It offers a user-friendly control system, allowing for automatic monitoring and easy maintenance.

Marine Technic provides spare parts for the CS3000, including filter cartridges, coalescer elements, AGM media, and maintenance kits, ensuring long-term reliability and optimal performance.

Further description

  • Processing Capacity: 3.0 m³/hr (792 US gal/hr)
  • Discharge Oil Content: <5 ppm
  • Power Consumption: 2.2 kW (50/60Hz)
  • Weight (Dry/Wet): 650 kg / 1,200 kg
  • Casing Material: 316 Stainless Steel
  • Dimensions (WxDxH): 1269 × 849 × 1473 mm
  • Operating Pressure: 1.38 bar (20 psi)
