Victor Marine

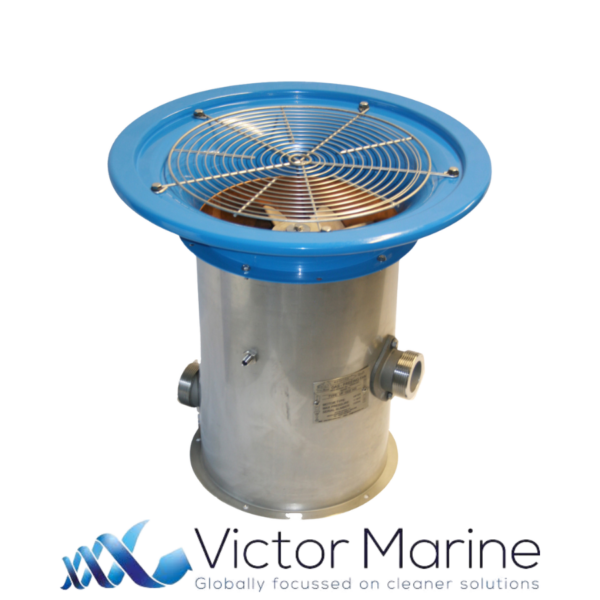

VP1500W – Water-Driven Gas Freeing Fan

A high-powered, deep penetration water-driven gas freeing fan, delivering 14,800 m³/hr airflow, ideal for large crude oil tankers and ULCCs.

Brand: Victor Marine · Category: Gas Freeing Fans

WaterDrive Medium
14,800 m³/hr (246 m³/min)Airflow Capacity
3,120 N/m² (Pa)Static Pressure
12 kg/cm²Operating Pressure
View specifications

Overview

About this product

The VP1500W Water-Driven Gas Freeing Fan is a powerful and efficient ventilation system, designed for large cargo tanks requiring rapid gas dispersion. With an airflow capacity of 14,800 m³/hr, this unit ensures high-volume gas-freeing with optimized static pressure (3,120 N/m²).

Technical specifications

Drive MediumWater
Airflow Capacity14,800 m³/hr (246 m³/min)
Static Pressure3,120 N/m² (Pa)
Operating Pressure12 kg/cm²
Noise Level (@1m)88 dB
Exhaust ModeReversible
Casing Material316 Stainless Steel
Impeller MaterialLM6 Marine-Grade Aluminum
Weight27 kg
Deck Mounting318mm ID, 389mm PCD

Detailed product information

Equipped with a 3D Francis Turbine water motor, this fan reduces water consumption by 15% while maintaining exceptional airflow throughput. Its non-sparking aluminum LM6 impeller is ATEX-certified, ensuring safe operation in hazardous conditions.

The VP1500W’s fully corrosion-resistant casing, made from 316 stainless steel, enhances durability and longevity, making it a reliable solution for continuous gas-freeing operations. With an operating noise level of 88 dB, this unit provides high-performance ventilation with minimal environmental disturbance.

Downloads

Victor Marine Gas Freeing Fans

Product and technical documentation

Open document ↗
