Inline Sample Units

Zematra’s Inline Sample Units provide a comprehensive solution for obtaining accurate and reliable fuel samples during critical transfer operations. Designed to be mounted on ship bunker lines, these samplers effectively capture continuous samples throughout the entire bunkering period, ensuring a representative sample for quality control and analysis.

The Inline Sample Units are designed for ease of installation and compatibility, allowing them to be fitted directly onto existing pipelines without complex modifications. Available in various models, these samplers offer versatility and precision, making them the preferred choice for marine fuel monitoring, industrial fuel transfer, and environmental testing.

Key Benefits of Zematra’s Inline Sample Units:

1. Precision Sampling: Designed to collect accurate and representative samples during bunkering or fuel transfer operations.

2. Compliant with International Standards: Meets the requirements of ISO 3171 and ASTM D 4057, ensuring the highest standards of sampling integrity.

3. Lightweight and Easy Installation: Simplifies the installation process with models that require no welding.

4. Customizable Design: Tailored to fit various flange types, pipe sizes, and operational requirements.

5. Versatile Models: Multiple models are available to accommodate different sampling needs and installation preferences.

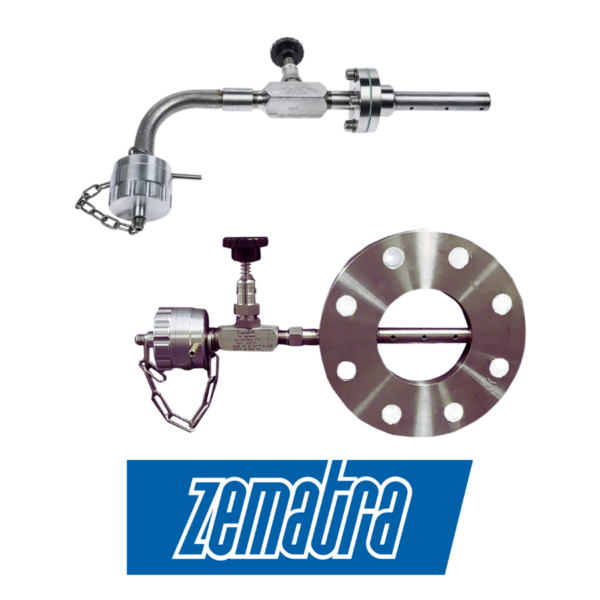

Available Drip-Sampler Models:

• Model A – With Spool Piece (Product Code: 1008001):
  Designed for installation without welding. Mounted within a flange pipe section placed between the bunker hose and the manifold.

• Model B – To Be Welded on the Line (Product Code: 1008002):
  Permanently installed by welding directly onto the bunker pipe immediately after the manifold. Requires explosion-proofing before welding.

• Model C – Portable Sampler (Product Code: 1008003):
  Mounted on a flange and placed between the bunker hose flange and the manifold flange. No welding required, offering a flexible and easy-to-use solution.

Applications:

• Marine Fuel Monitoring: Accurate sampling during bunkering for precise fuel quality analysis.

• Industrial Fuel Transfer: Ensures sample integrity during high-volume transfers.

• Environmental Testing: Reliable sampling of various fluids for compliance and analysis.
