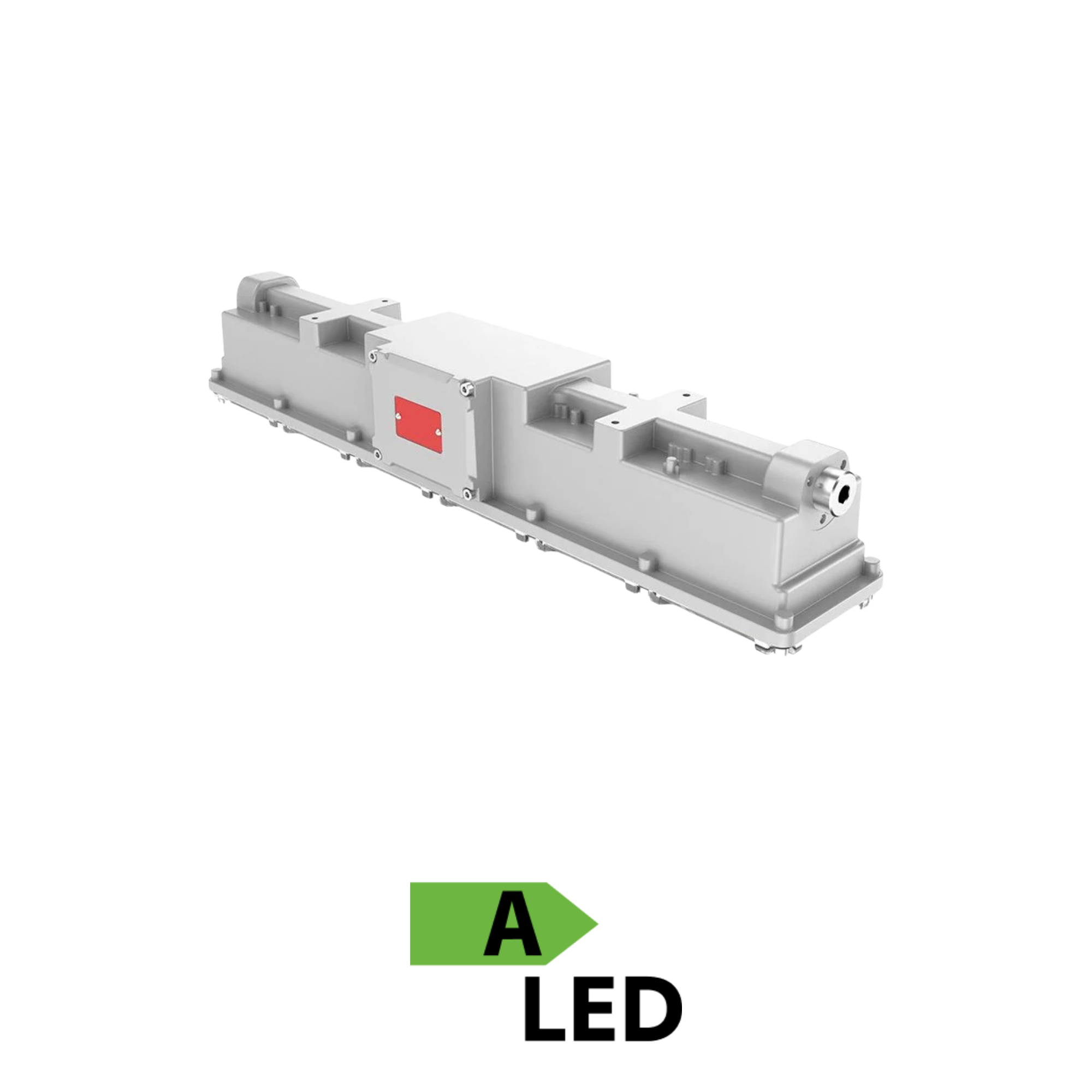

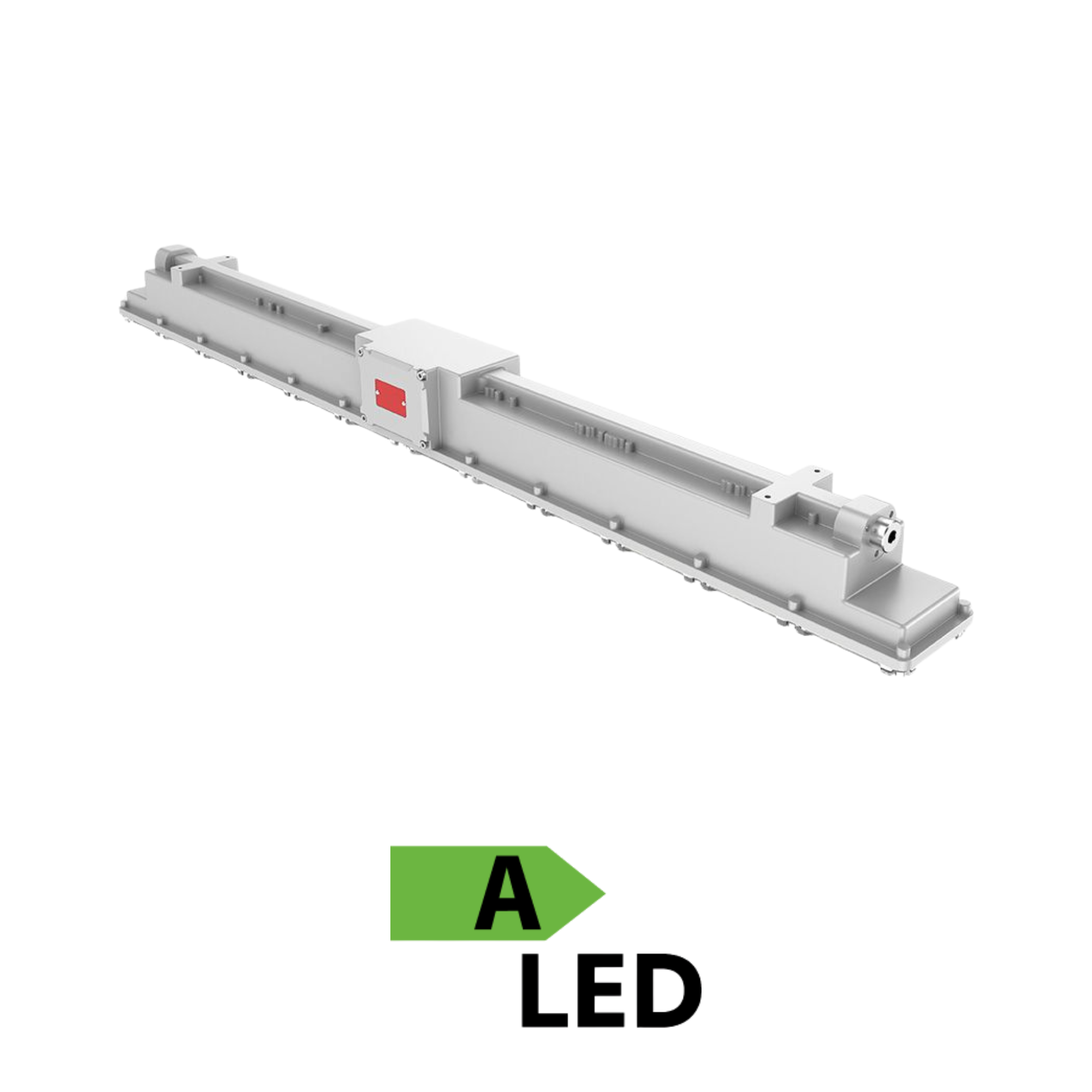

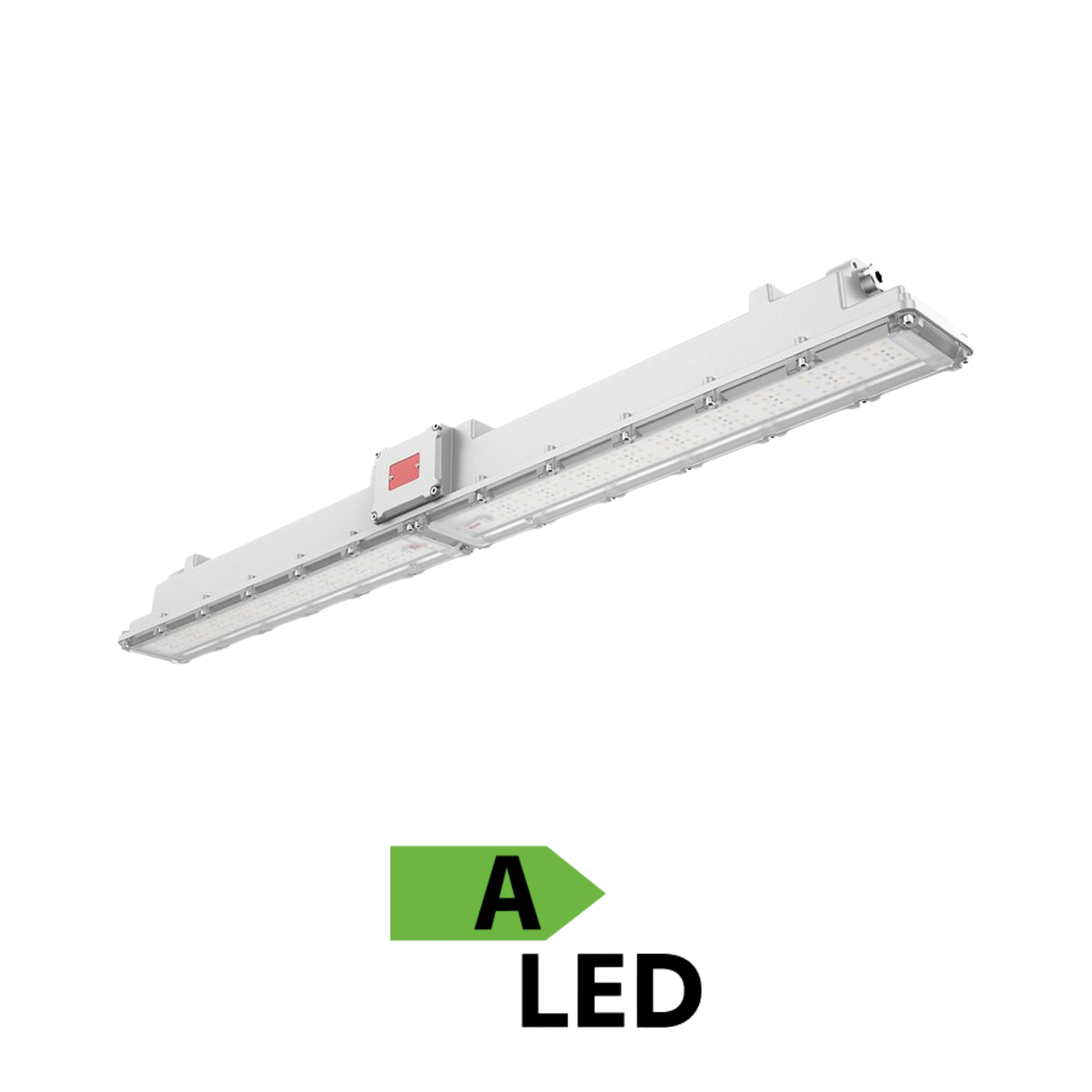

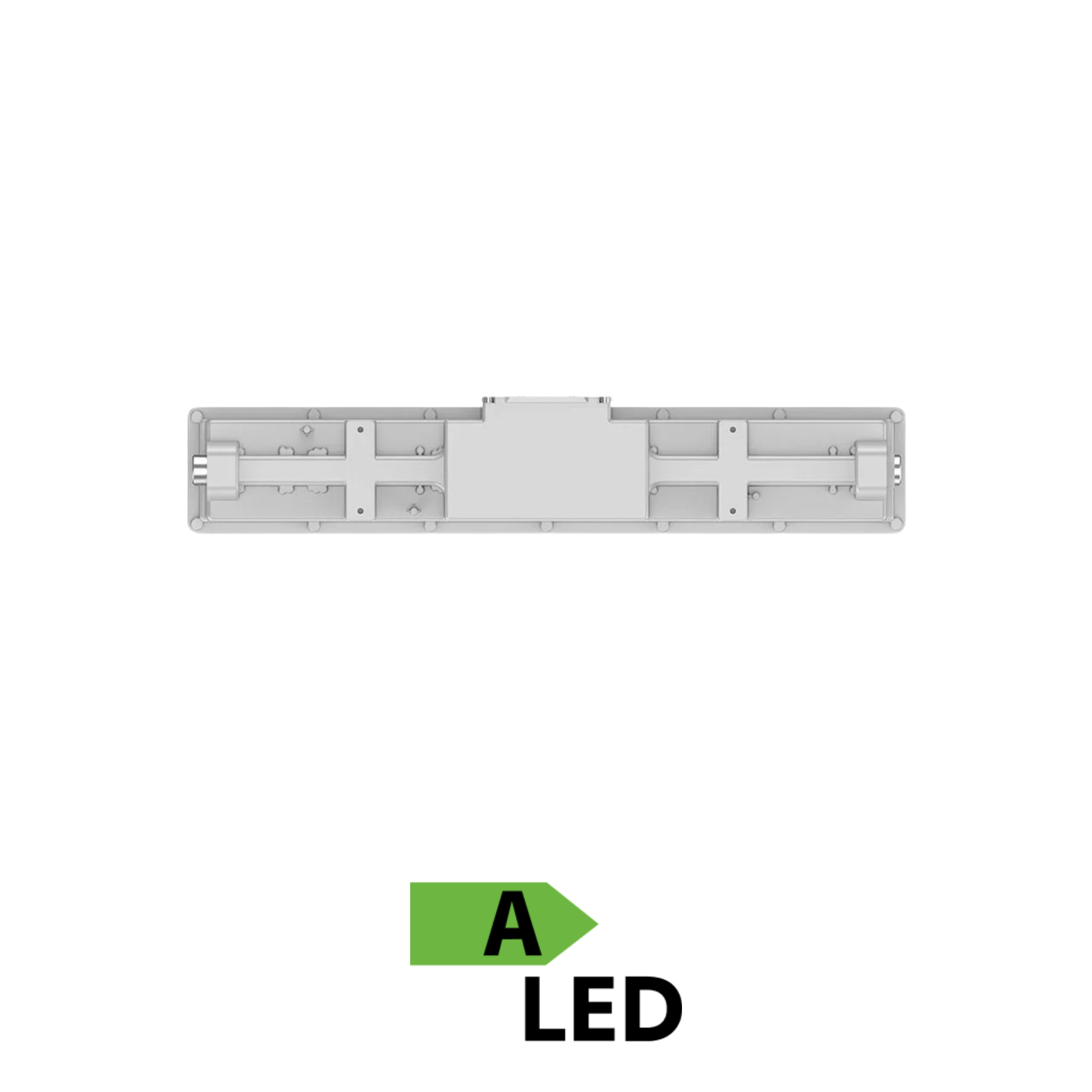

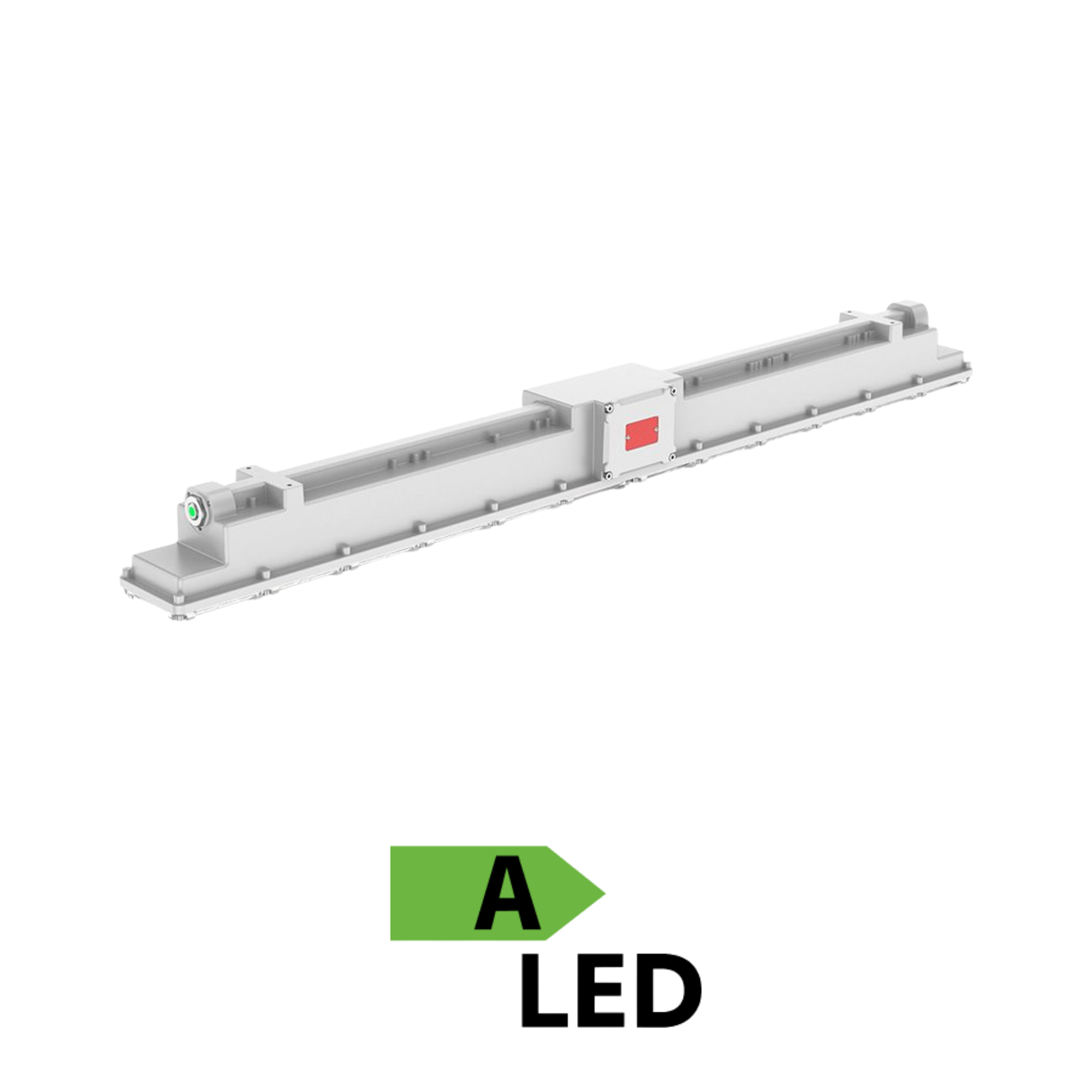

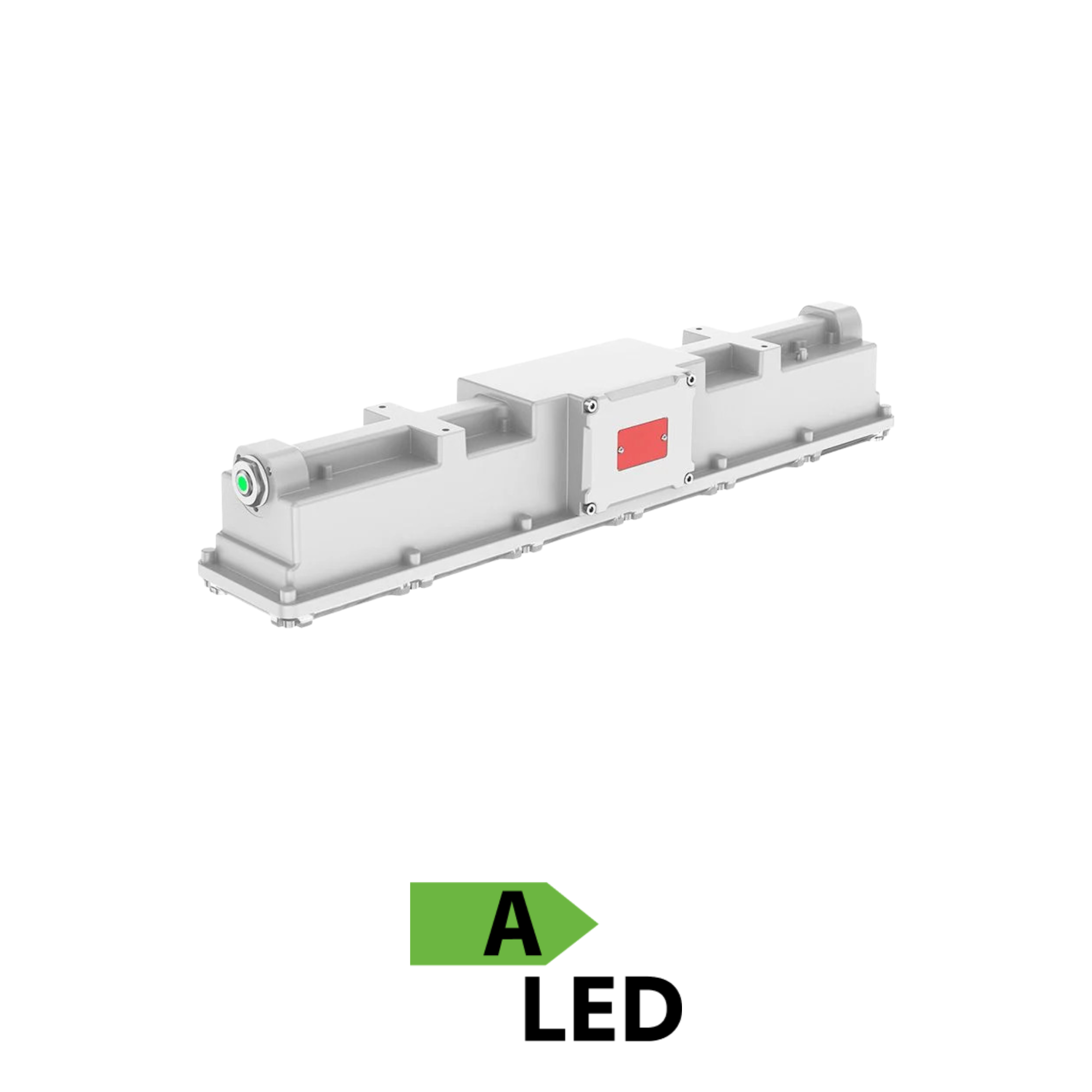

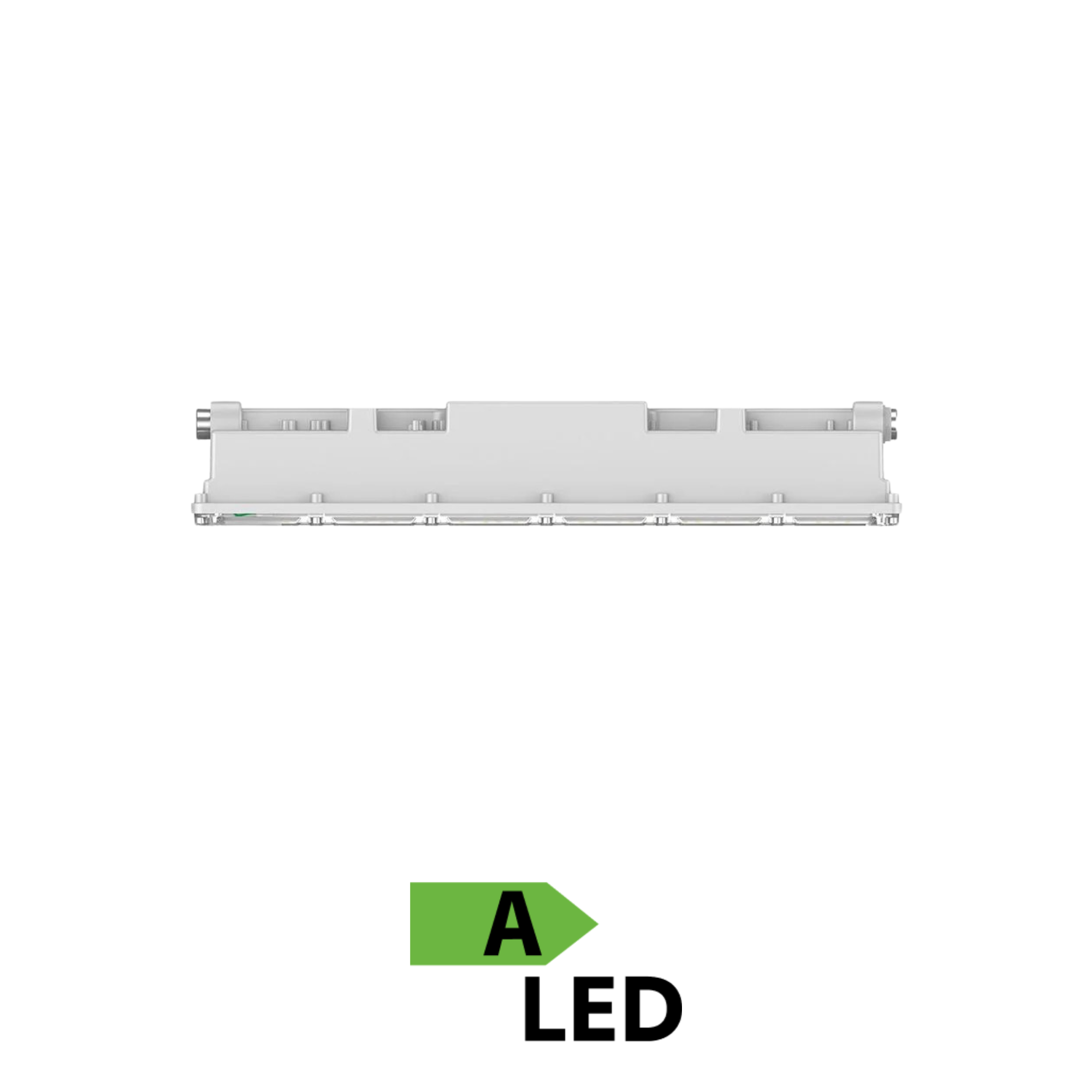

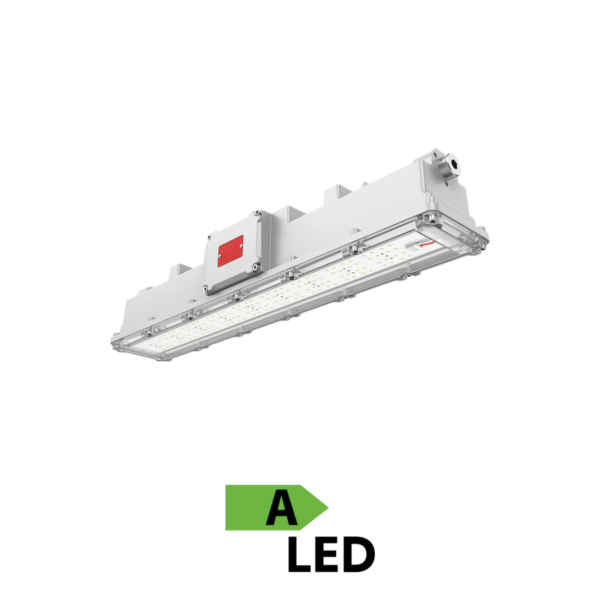

The Explosion-proof marine LED light IronGlow EX delivers reliable illumination for hazardous location LED luminaire applications on vessels and offshore installations. It meets strict safety and performance requirements for marine hazardous zones. IronGlow EX uses ATEX and IECEx certified marine lighting technology and operates safely in Zone 1, Zone 2, Zone 21, and Zone 22 areas. Therefore, it suits locations where flammable gases, vapours, or dust may occur. Multiple power options and high lumen output allow users to set correct light levels while reducing energy use and maintenance.
The luminaire withstands harsh marine and offshore conditions. A corrosion-resistant housing protects the unit from water, dust, and mechanical impact. In addition, the high-efficiency LED engine delivers stable and uniform light output in all configurations. This performance makes IronGlow EX suitable for engine rooms, pump rooms, hazardous cargo spaces, and other critical onboard areas. As a result, operators achieve dependable and compliant lighting in safety-critical zones.
The design supports long service life and high operating efficiency. Advanced thermal control keeps the LEDs within safe temperature limits during continuous use. Furthermore, robust optics maintain consistent light distribution in demanding environments. IronGlow EX offers flexible mounting options to match different installation needs onboard ships and offshore platforms. Overall, the luminaire provides a durable and efficient lighting solution for professional maritime and industrial applications.
The IronGlow EX hazardous location LED luminaire is designed for continuous operation in marine and industrial hazardous areas where safety, durability and electrical compatibility are critical. The luminaire is available in seven power ratings from 20 W to 100 W, with corresponding luminous flux levels ranging from 3200 lm to 16000 lm, enabling correct dimensioning for both general illumination and task-specific lighting.
The luminaire operates on a wide input voltage range, supporting 24–48 Vac, 120–277 Vac, 277–480 Vac, and 18–48 Vdc, making it suitable for integration into diverse vessel and offshore electrical systems. Power factor is greater than 0.90, and integrated surge protection provides up to 6 kV line to line and 10 kV line to earth, ensuring electrical robustness in unstable supply environments. The driver operates on constant current technology, with optional 1–10 V dimming available for selected AC voltage ranges.
The LED system is based on high-efficiency 3030 LED packages, delivering luminous efficacy up to 160 lm/W at 5000 K. Standard correlated colour temperature is 5000 K, with optional variants ranging from 2000 K to 6500 K, as well as coloured options including red, green, blue and amber. Multiple beam angles and optical distributions are available, allowing precise light control for corridors, machinery spaces, process areas and open hazardous zones.
The enclosure is manufactured from fiberglass reinforced polycarbonate, providing corrosion resistance and mechanical strength for marine environments. The luminaire is rated IP66 for ingress protection and IK08 for impact resistance. Operating temperature ranges support demanding shipboard and offshore conditions. LED lifetime reaches 77,000 hours at L90, extending to 175,200 hours at L80 and 282,900 hours at L70, reducing maintenance intervals and lifecycle costs.

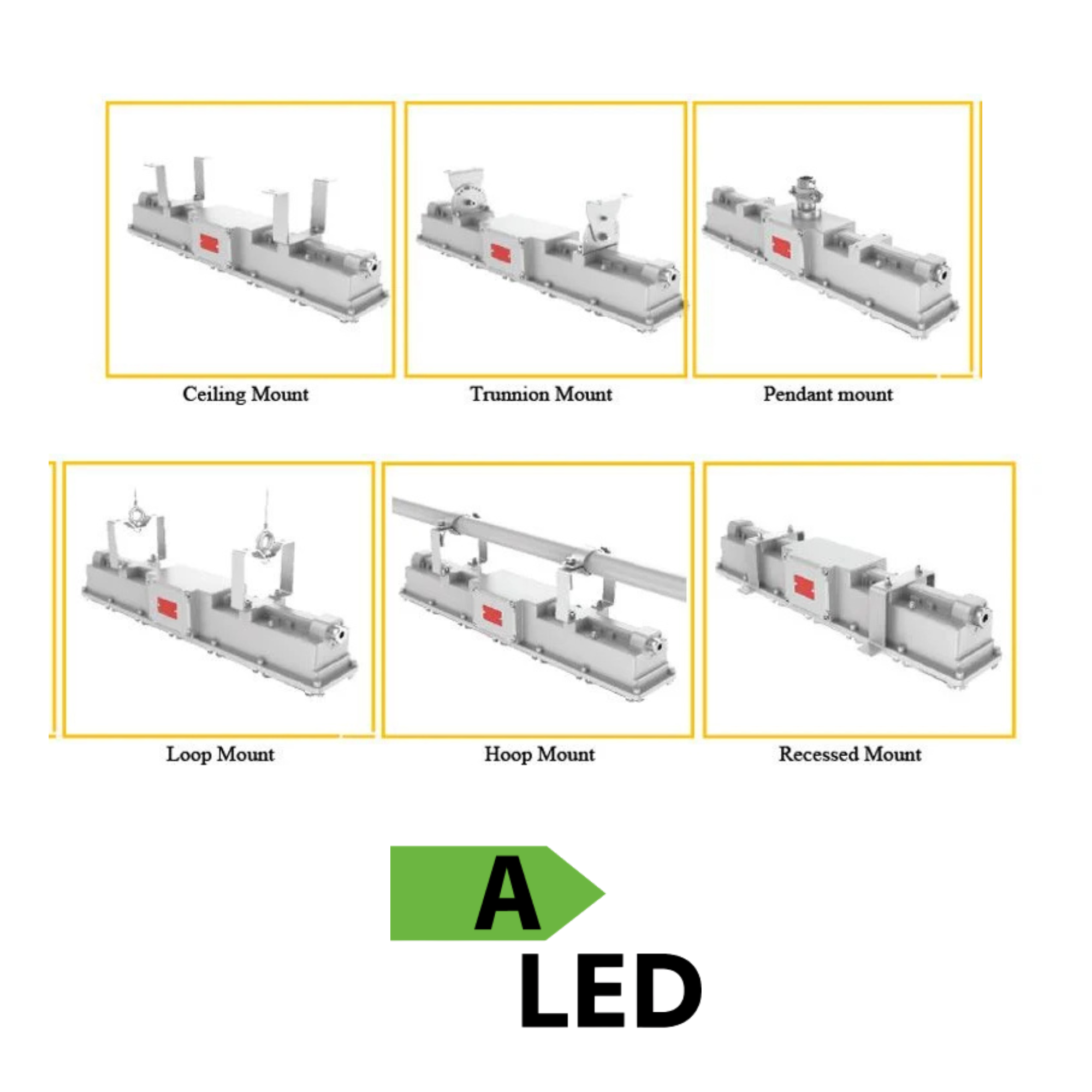

Optional emergency lighting configurations are available, providing 10 W for 3 hours or 20 W for 1.5 hours, ensuring compliance with safety lighting requirements in critical areas. Multiple mounting options and certified cable entry sizes support safe and flexible installation across a wide range of applications.
