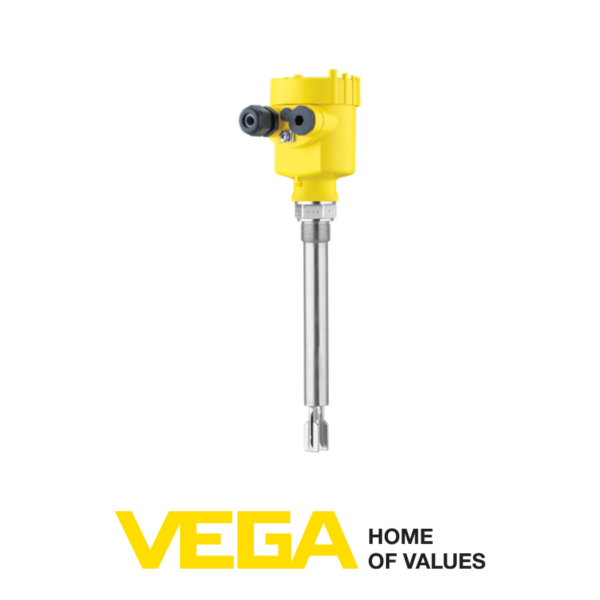

The VEGASWING 63 is a robust vibrating level switch with a tube extension, designed for precise and reliable point level detection in ship tanks and marine process systems. It offers safe switching, even under extreme pressure and temperature, making it ideal for critical monitoring on board.
The VEGASWING 63 is a dependable level switch for detecting the limit level of liquids, independent of viscosity, foam, or conductivity. Built with marine and offshore operations in mind, it delivers consistent performance in demanding environments — from ballast and cargo tanks to oil reservoirs and bilge systems.
Equipped with a rigid tube extension, the VEGASWING 63 allows the switching point to be positioned deep within the tank or pipeline, up to 6 meters away from the mounting location. This makes it ideal for high, narrow tanks or installations where top or side access is required. The device is maintenance-free, featuring no mechanical moving parts and a vibration-based detection system that eliminates the need for calibration.
Designed for safety and durability, the VEGASWING 63 is resistant to high pressure and temperature variations. Its compact yet rugged construction ensures it remains reliable even in the presence of turbulence, vibration, or harsh media — conditions commonly found aboard ships and offshore installations.
Marine Technic supplies the VEGASWING 63 to shipowners, marine engineers, and shipyards requiring point level control with maximum accuracy. As an experienced partner for VEGA instrumentation, we offer tailored sensor solutions that meet the strict demands of the maritime industry.
Process Temperature Range: -50 °C to +250 °C
Process Pressure Range: -1 to +64 bar
Measuring Principle: Vibrating level switch for liquids
Minimum Media Density: > 0.5 g/cm³
Installation Length: Up to 6 meters (tube extension)
Wetted Materials: 316L stainless steel, Alloy C22, Alloy 400, PFA, ECTFE, Enamel
Seal Material: Non-contact (no direct exposure to media)
Process Connections: Threaded ≥ G¾, Flange ≥ DN25, hygienic fittings available
Output Signals: Relay (DPDT), Transistor (PNP/NPN), Two-wire, NAMUR
Protection Ratings: IP66, IP67, IP68 (1 bar), IP65
Certifications: Compliant with international marine standards, suitable for use on vessels and offshore platforms
Typical Marine Applications: Ballast tanks, bilges, fuel and oil tanks, cargo tank overfill protection, pump dry run prevention
