Primus

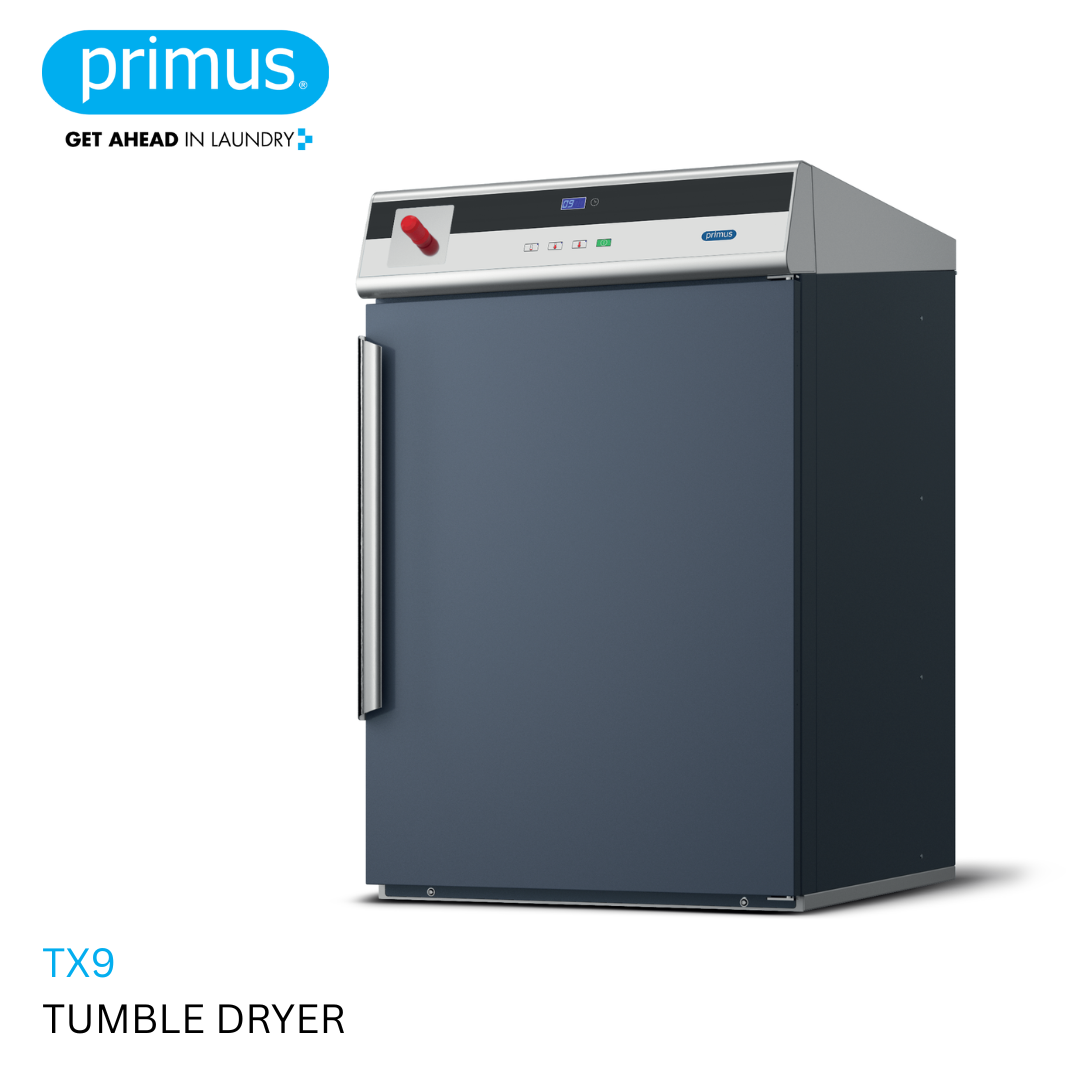

Primus TX9 Marine Tumble Dryer – 9 kg
The Primus TX9 Marine Tumble Dryer is a compact professional electric dryer with 9 kg nominal capacity, a 195 L stainless steel drum and flexible 6, 9 or 12 kW heating options. Its compact dimensions and available 3 × 440 V 60 Hz configuration make it particularly suitable for professional onboard laundry installations.
Key features:
- 9 kg capacity at 1:22
- Up to 11 kg capacity at 1:18
- 195 L stainless steel drum
- Ø670 × 555 mm drum
- Ø500 mm large door opening
- 210° door opening angle
- Reversible door direction
- 300 m³/h axial airflow
- Electric heating: 6 / 9 / 12 kW
- 3 × 440 V 60 Hz configuration available
- Easy-to-Use Microprocessor (ECT)
- Optional reversing drum
- Optional Sensodry® residual moisture control
- ECO reduced-kW configurations available
Overview
About this product
The Primus TX9 Marine Tumble Dryer provides reliable professional drying in a compact format. Its 9 kg nominal capacity, 195-litre stainless steel drum and flexible electrical configurations make it well suited to onboard laundry installations.
Technical specifications
Technical Specifications
Brand: Primus
Model: TX9
Product Type: Professional Tumble Dryer
Capacity (1:18): 11 kg / 24 lb
Capacity (1:22): 9 kg / 20 lb
Drum Volume: 195 L
Drum Diameter: Ø670 mm
Drum Depth: 555 mm
Door Opening: Ø500 mm
Door Direction: Right, reversible
Door Opening Angle: 210°
Airflow Type: Axial
Airflow: 300 m³/h
Heating Type: Electric
Heating Power: 6 / 9 / 12 kW
Total Power Supply: 6.4 / 9.4 / 12.4 kW
Fan Motor: 0.25 kW
Drive Motor: 0.25 kW
Exhaust: 150 mm
Drying Sequence Noise: 55 dB
Dimensions (H × W × D): 1150 × 710 × 945 mm
Net Weight: 125 kg
Packed Dimensions (H × W × D): 1253 × 752 × 970 mm
Gross Weight: 180 kg
Electrical Configurations
- 3 × 220–230 V 50 Hz
- 3 × 220–230 V 60 Hz
- 3 × 240 V 50 Hz
- 3 × 380–415 V + N 50 Hz
- 3 × 380–415 V + N 60 Hz
- 3 × 380–415 V 50 Hz
- 3 × 440 V 60 Hz
Available configurations and options may vary. Contact Marine Technic for assistance in selecting the appropriate Primus TX9 configuration for your vessel or offshore project.
Detailed product information
Primus TX9 Compact Marine Tumble Dryer
The compact design helps save valuable installation space. Meanwhile, the large Ø500 mm door opening makes everyday loading and unloading easier.
For marine applications, Primus offers the TX9 with a 3 × 440 V 60 Hz electrical configuration. This makes it easier to match the dryer with common onboard electrical requirements.
Efficient Drying Performance
The TX9 uses axial airflow with a rated airflow of 300 m³/h. This system promotes efficient heat transfer and supports short, consistent drying cycles.
The stainless steel drum measures Ø670 mm in diameter and 555 mm in depth. Primus also offers a reversing drum as an option. This feature improves load movement and helps achieve more uniform drying.
Flexible Electric Heating
The Primus TX9 marine tumble dryer uses electric heating with three available power levels: 6, 9 or 12 kW.
As a result, operators can select a configuration that matches the vessel's available electrical capacity. Primus also offers ECO versions with reduced-kW heating elements.
Several electrical configurations are available. Importantly for marine installations, these include a 3 × 440 V 60 Hz option.
Optional Sensodry® Moisture Control
Primus also offers Sensodry® residual moisture control as an option for the TX9.
Sensodry® monitors the humidity remaining in the load during operation. Therefore, the system can provide more precise drying for delicate textiles. It also helps avoid unnecessary over-drying and supports better fabric care.
Simple and Convenient Operation
The TX9 features the Easy-to-Use Microprocessor (ECT). Its intuitive controls provide simple access to three drying programs.
In addition, the Ø500 mm door opens to an angle of 210°. Operators can also reverse the standard right-hand door configuration to suit different laundry layouts.
The machine combines a stainless steel drum with an anthracite grey exterior and Inox top panel. These materials provide a durable construction for professional laundry environments.
Compact Solution for Onboard Laundries
At only 1150 × 710 × 945 mm, the TX9 combines professional drying performance with a relatively small footprint. Therefore, it offers a practical solution for vessels with limited laundry space.
Marine Technic can help select the appropriate Primus TX9 configuration for each project. Selection can take into account installation space, required capacity, electrical supply and operational requirements.
Downloads
Primus TX9 Marine Tumble Dryer
Open document ↗Product and technical documentation
